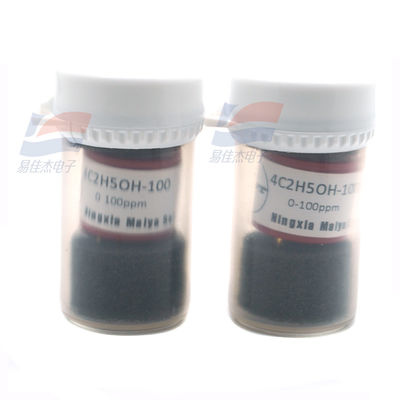

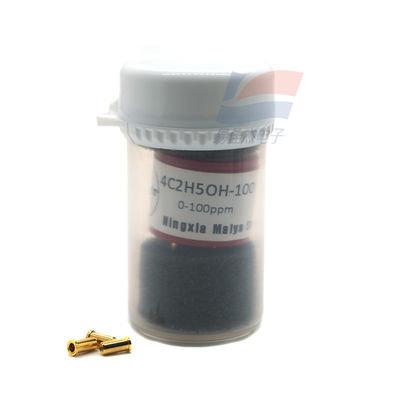

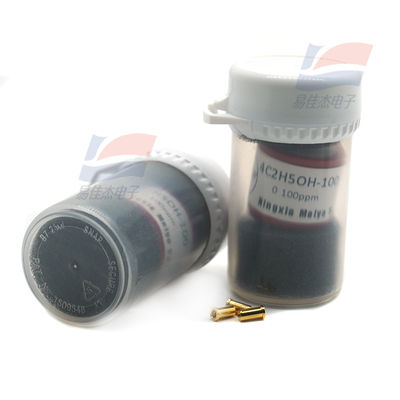

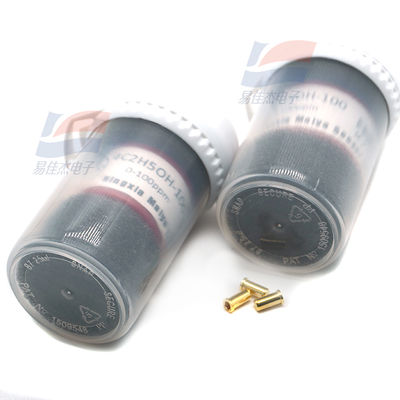

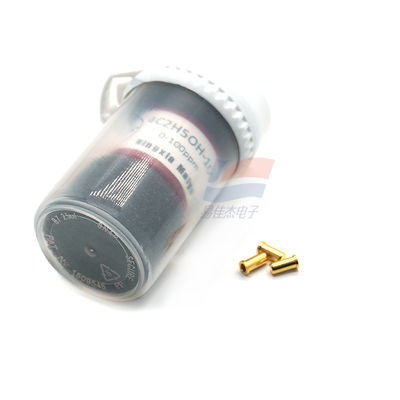

YJJ 4C2H5OH-100 4-Series Electrochemical Sensor Ethanol Sensor(C2H5OH Sensor)

Product Description:

YJJ 4C2H5OH-100 4-Series electrochemical sensor Ethanol Sensor(C2H5OH sensor)

Features:

Repeatability Linearity Temperature Humidity

Pressure Pressure factor

Baseline extent Long term drift

Bias voltage

Load resistance Built-In Filters Lifetime Warranty

Output current polarity

1% output signal

Linearity, regression coefficient R2=0.999

-20℃ ~ +50℃

15%~90%RH (relative humidity), non-condensing Atmospheric pressure ±10%

< 0.02% signal /MBar

＜±0.4µA

< 5% signal loss / year

+300mV (Note: The biased sensor must be calibrated after more than 12 hours of stability after

being inserted into the instrument)

10Ω

No

2 years (in air)

1 year (from the date of shipment)

Positive current (define the output current of carbon

n sulfide sensor as positive)

Declaration:

1. 4-Series electrochemical gas sensors are designed for gas leak monitoring and alarm. They are not

suitable for long-term exposure to the gas to be measured or long-term on-line continuous detection

and analysis instruments.

2. Sensor pins must be connected through a PCB socket, Welding the pin directly will damage the

sensor.

3. Sensors should avoid contact with organic solvents, alcohol, paint, oil and high concentration of

gas, including silica gel and other adhesives.

4. Electrochemical sensors with positive output current (such as CO, H2S, SO2, NH3, etc.) require

oxygen to participate in the reaction and should be calibrated with the standard gas of air as the

background gas and test, otherwise it will destroy the sensor's performance.

5.Do not remove or insert the sensor when it is powered on. Otherwise, the sensor may be damaged

or abnormal.
