Thông tin chi tiết sản phẩm:
|
| Output: | Single-bus | Working voltage: | 3.3~5.5V DC |
|---|---|---|---|
| Shell material: | ABS+PC | Power consumption: | 2-5uA |
| Làm nổi bật: | AM2305B temperature humidity sensor,long-term stability humidity probe,temperature sensor with high accuracy |
||

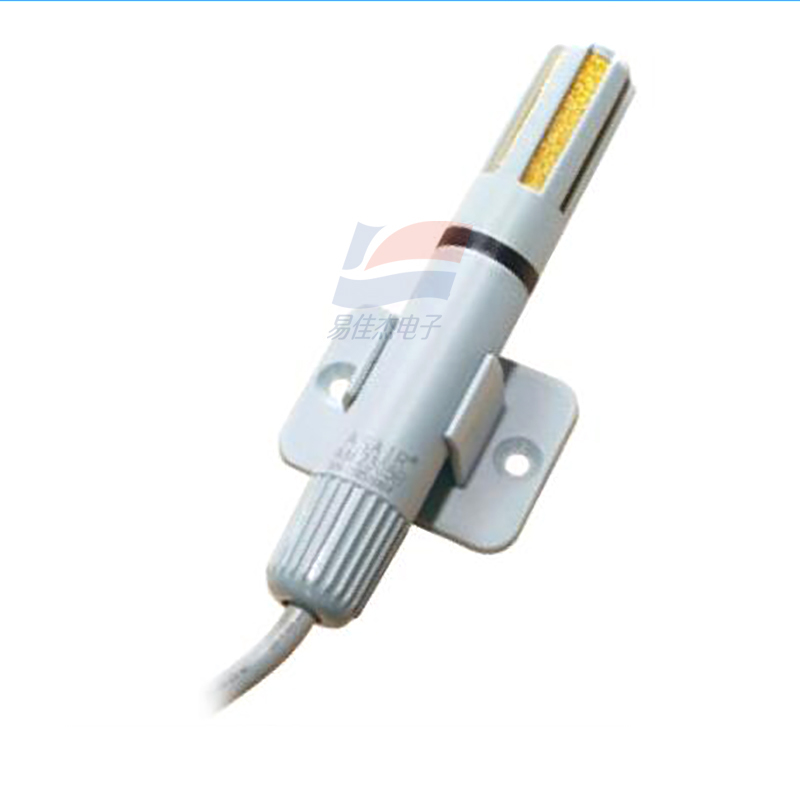

AM2305B Temperature And Humidity Probe Excellent Long Term Stability
AM2305B is a temperature and humidity sensor with calibrated digital signal output. AM2305B is equipped with a newly designed ASlC
chip, an improved MEMS semiconductor capacitive humidity sensor and a standard temperature sensor, and its performance has reached
the industry's advanced level.
AM2305B has single-bus communication singal, and the signal transmission distance can reach more than 20 meters, making it the
best choice for various applications and even the most demanding ap. plications. The single bus has 3 wires, small in size and low in power
consumption. lt uses direct output of humidity and temperature information after temperature compensation. Users do not need to perform
secondary calculations on the digital output, and do not need to perform temperature compensation on the humidity to obtain accurate information.
Specification:
| Measure range | Temperature:-40~+80'C Humidity: 0~99.9%RH |
| Accuracy | Temperature:+0.5°C Humidity:士3%RH(25°C) |
| Resolution | Temperature: 0.1°C Humidity:0.1%RH |
| Repeatability | Temperature:±0.2°C Humidity:±0.1%RH |
