Thông tin chi tiết sản phẩm:
|
| Loại cảm biến: | 3 trục | trục cảm biến: | XYZ |
|---|---|---|---|
| tăng tốc: | 2g, 4g, 8g | Nhạy cảm: | 1024 con/g, 2048 con/g, 4096 con/g |
| Làm nổi bật: | MMA8451QT digital accelerometer,3 axis accelerometer sensor,MMA8452QT motion sensor |
||

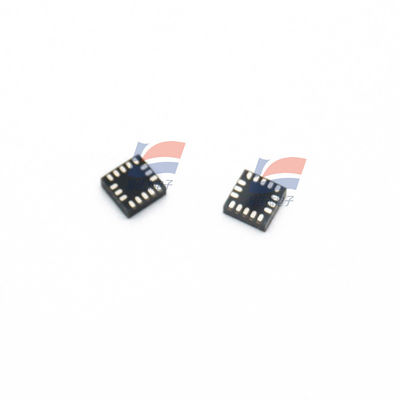

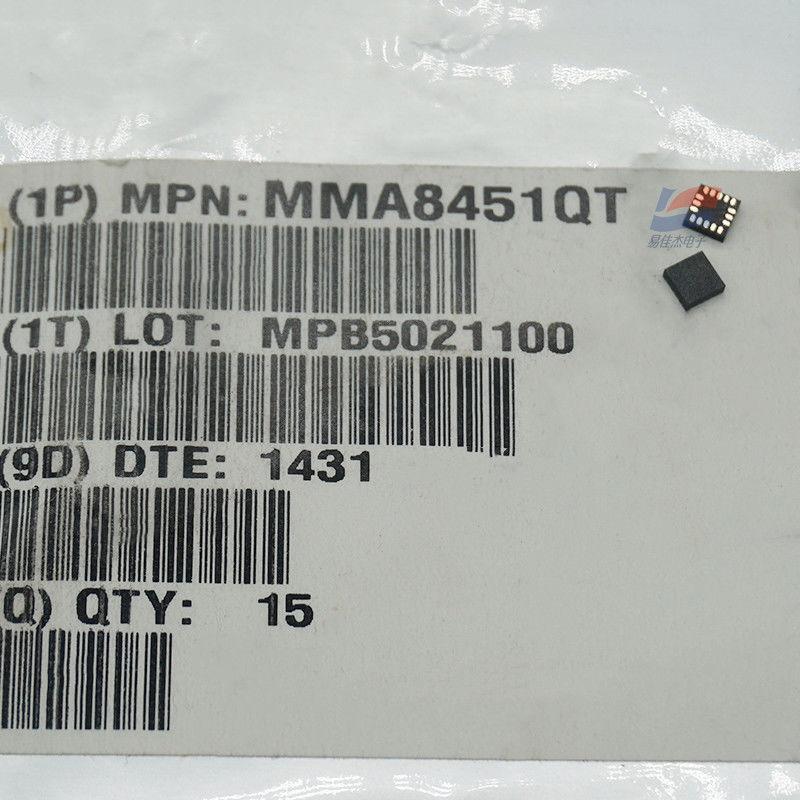

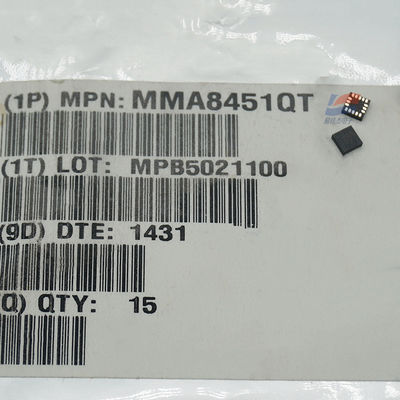

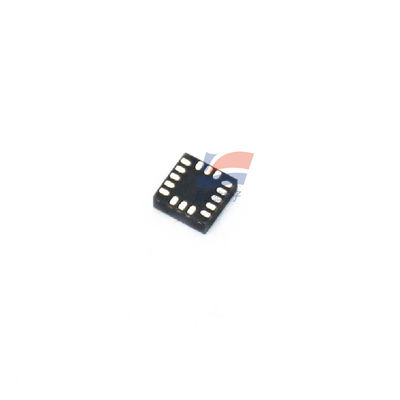

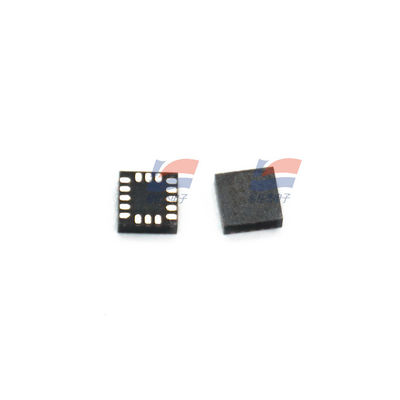

MMA8451QT Accelerometers Digital accelerometer 3 Axis
The MMA8451Q is a smart, low-power, three-axis, capacitive, micromachined accelerometer with 14 bits of resolution. This accelerometer is packed with embedded functions with flexible user programmable options, configurable to two interrupt pins. Embedded interrupt functions allow for overall power savings relieving the host processor from continuously polling data. There is access to both low-pass filtered data as well as high-pass filtered data, which minimizes the data analysis required for jolt detection and faster transitions. The device can be configured to generate inertial wakeup interrupt signals from any combination of the configurable embedded functions allowing the MMA8451Q to monitor events
and remain in a low-power mode during periods of inactivity. The MMA8451Q is available in a 16-pin QFN, 3 mm x 3 mm x 1 mm package.
|
Output Type
|
Digital |
| Interface Type | I2C |
| Resolution | 8 bit, 14 bit |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.95 V |
| Operating Supply Current | 165 uA |
| Minimum Operating Temperature | - 40℃ |
| Maximum Operating Temperature | + 85℃ |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-16 |
