Thông tin chi tiết sản phẩm:
|
| loại áp suất: | sự khác biệt | Áp lực vận hành: | 2 trong H2O |
|---|---|---|---|
| Độ chính xác: | 0,05% | Loại đầu ra: | Điện áp tương tự |
| Làm nổi bật: | board mount differential pressure sensor,through hole pressure sensor,current sensor pressure transducer |
||

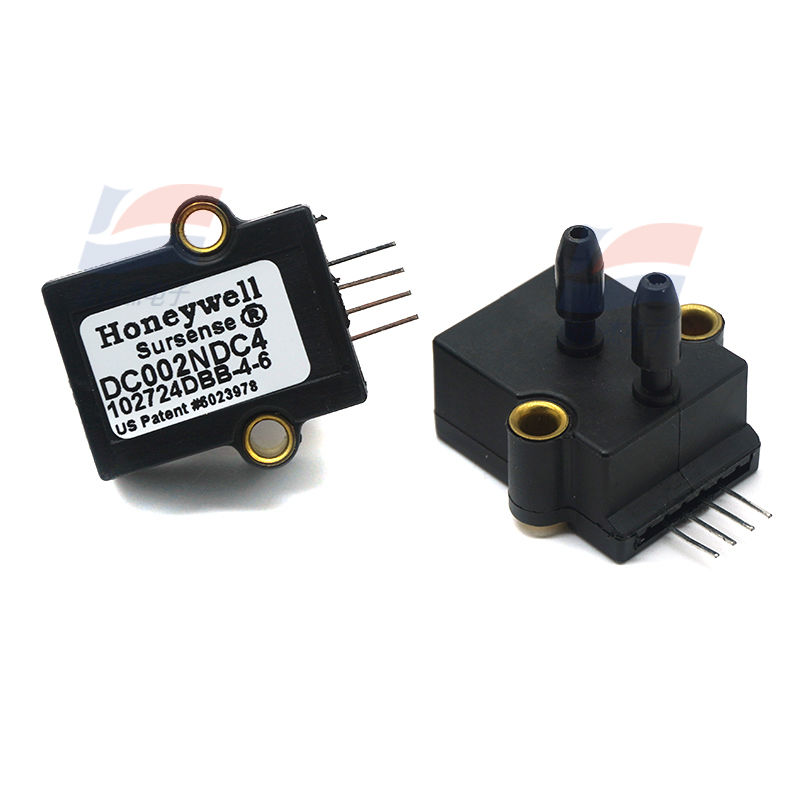

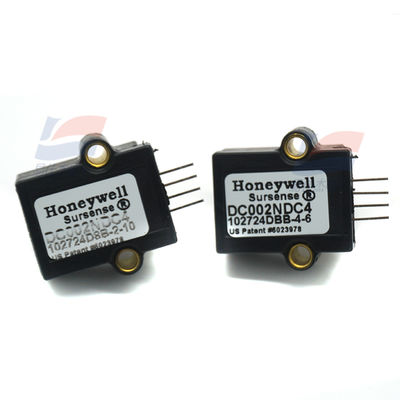

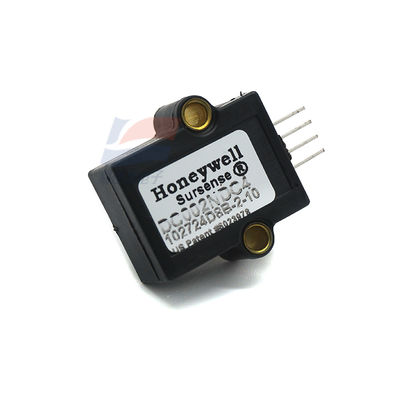

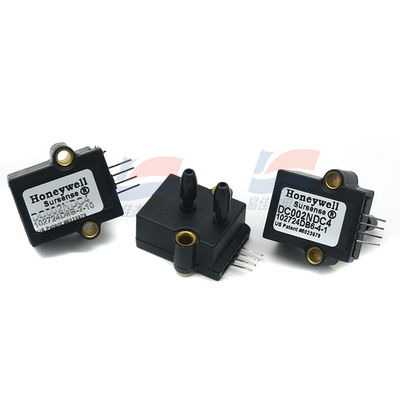

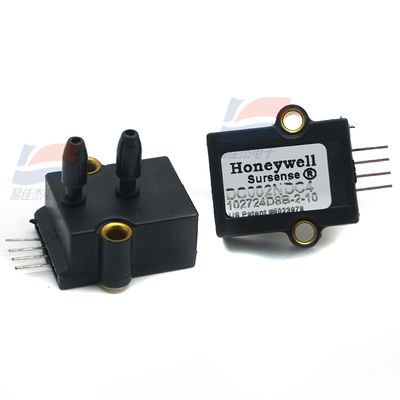

DC002NDC4 Board Mount Pressure Sensors Differential Through Hole
FEATURES
• Ultra Low Pressure Sensing, down to 2.5 mBar
• ASIC Technology
• Available in Gage and Differential Pressure Ranges
• Available in Ratiometric and Regulated
• Temperature Compensated over 0 °C to 50°C [32 °F to 122 °F]
• Combined Linearity and Hysteresis error < ±0.25 % Span
TYPICAL APPLICATIONS
• Medical Instrumentation
• HVAC
• Environmental Controls
• Portable Monitors
Specification
| Output | 0.25 V ~ 4.25 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 5V |
| Port Size Male | - 0.19" (4.83mm) Tube, Dual |
| Maximum Pressure | 3.61PSI (24.92kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
