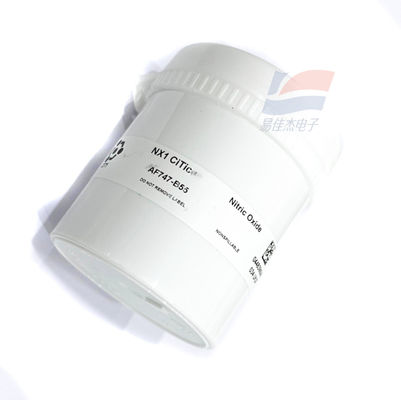

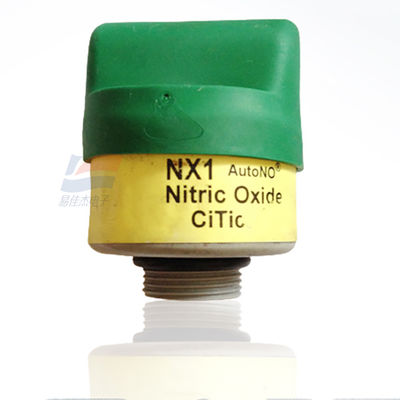

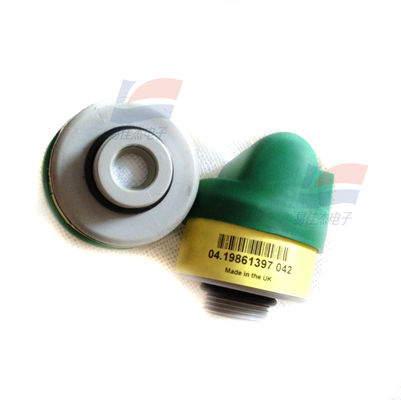

YJJ NX1 AF747-B55 Electrochemical Nitric Oxide NO Exhaust Sensor for Accurate Vehicle Inspection

Tôi trò chuyện trực tuyến bây giờ

YJJ NX1 AF747-B55 Electrochemical Nitric Oxide NO Exhaust Sensor for Accurate Vehicle Inspection

YJJ NX1 AF747-B55 Electrochemical Nitric Oxide NO Exhaust Sensor for Accurate Vehicle Inspection
YJJ NX1 AF747-B55 Electrochemical Nitric Oxide NO Exhaust Sensor for Accurate Vehicle Inspection YJJ NX1 AF747-B55 Electrochemical Nitric Oxide NO Exhaust Sensor for Accurate Vehicle Inspection YJJ NX1 AF747-B55 Electrochemical Nitric Oxide NO Exhaust Sensor for Accurate Vehicle Inspection YJJ NX1 AF747-B55 Electrochemical Nitric Oxide NO Exhaust Sensor for Accurate Vehicle Inspection

Hình ảnh lớn :  YJJ NX1 AF747-B55 Electrochemical Nitric Oxide NO Exhaust Sensor for Accurate Vehicle Inspection

Thông tin chi tiết sản phẩm:
Nguồn gốc: nước Anh
Hàng hiệu: CITY
Số mô hình: NX1 AF747-B55
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Giá bán: có thể đàm phán
chi tiết đóng gói: Túi
Thời gian giao hàng: 5 đến 8 ngày làm việc
Điều khoản thanh toán: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Khả năng cung cấp: 500

YJJ NX1 AF747-B55 Electrochemical Nitric Oxide NO Exhaust Sensor for Accurate Vehicle Inspection

Sự miêu tả
Sản lượng: 0,05 ± 0,01 μ/ppm Phạm vi: 0 - 5000 ppm
Bao bì: Chai kín đặc biệt Phạm vi nhiệt độ hoạt động: -20 ° C đến 50 ° C
Độ chính xác: 1 phần triệu Điện áp Bias: + 300 mV
Làm nổi bật:

Accurate Vehicle Inspection NO Exhaust Sensor

,

Electrochemical Nitric Oxide NO Sensor

,

NX1 AF747-B55 NO Exhaust Sensor

Product Description:

NX1 AF747-B55 Electrochemical Nitric Oxide (NO) Exhaust Gas Analyzer Is Used For Vehicle Inspection Stations And Exhaust Gas Sensors



Features:

NX1 nitric oxide sensor is part of the AutoNO® series developed by Urban (Urban Technology Company) in the UK, and is used to detect nitric oxide gas in vehicles. It is equipped with a filter. The airborne service life is two years, and the maximum load is 5000 ppm. Key advantages: Specifically designed for automotive applications; Fast response speed.

Output: 0.05 ± 0.01 μa/ppm

Range: 0 - 5000 ppm

Packaging: Special sealed bottles

Operating temperature range: -20 °C to 50 °C

Accuracy: 1 ppm

Bias voltage: + 300 mV

Response time: Less than 8 seconds

Features: Built-in filter for automotive sensors, certified by BAR97

Type: Nitrogen oxide gas sensor

Typical application: Automotive gas detection

The nitrogen-oxygen sensor is used to analyze the content of nitrogen and oxygen in exhaust gas. It is an electrochemical sensor and has been applied in analytical instruments such as Guanzhong Technology, Fuming Environmental Protection Technology, Nanhua Instrument, and Guangzhou Fulihui Instrument.

Measurement range: 0 - 5000 ppm

Working life: 3 years in air

Output: 45 to 75 nanograms per ppm

Accuracy: +/- 3% (0 - 2000 ppm); +/- 5% (2000 - 5000 ppm)

Temperature range: 0 °C to 50 °C (with temperature compensation)

Pressure range: 750 to 1750 hPa

Response time (T90): < 5 seconds

Long-term drift: < 5% per month

Recommended load value: 10 ohms

Repeatability: 2%

Interface: 4-pin socket



Specifications:

Measurement range 0 - 5000 ppm
Working life 3 years in air
Pressure range 750 to 1750 hPa
Response time (T90) < 5 seconds
