Thông tin chi tiết sản phẩm:
|
| Độ nhạy / nA/ppm: | 75 ± 25 | Phạm vi cơ sở (không khí sạch) / ppm: | ± 5 |
|---|---|---|---|
| Khả năng lọc / ppm-giờ: | > 100.000 khí axit | T90 Thời gian phản hồi / Thứ hai: | 40 |
| Phạm vi đo / ppm: | 0 - 4000 | Quá tải / ppm: | 10000 |
| Làm nổi bật: | Electrochemical Carbon Monoxide CO Gas Sensor,GS+5CO-M CO Gas Sensor |
||
Product Description:

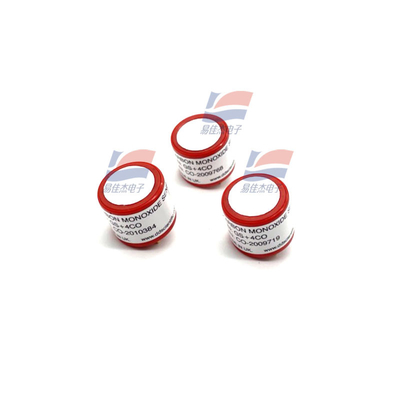

GS+5CO-M Electrochemical Carbon Monoxide (CO) Gas Sensor Is Used For Smoke Gas Monitoring
Features:
GS+5CO is a four-electrode carbon monoxide sensor that takes hydrogen compensation into account. It is optimally designed and complies with the strict requirements of EN50379 Part 1. It is applied in the field of strict flue gas monitoring.
Sensitivity / nA/ppm: 75 ± 25
Baseline range (clean air) / ppm: ± 5
Filtering capacity / ppm-hour: > 100,000 acidic gases
T90 response time / second: < 40
Measurement range / ppm: 0 - 4000
Overload / ppm: 10000
Is H2 compensation available? : Yes
Repeatability / CO equivalence: < ±2%
Recommended load resistance / ohm: 10
Resolution / ppm typical value: < 1
Continuous operating temperature: -30°C to +50°C
Pressure range: 800 to 1200 mbar
Working humidity: 15% to 90% RH
Long-term output drift / per year: < 5%
Recommended storage temperature /: 0°C to 20°C
Working life / in air: > 24
Guarantee: 12
Specifications:
| Pressure range | 800 to 1200 mbar |
| Operating voltage | 3.0V/(5.0V) |
| Analog voltage output | 0.4 - 2.0 VDC |
| Over-range output | 2.0 V - 2.4 V) |
